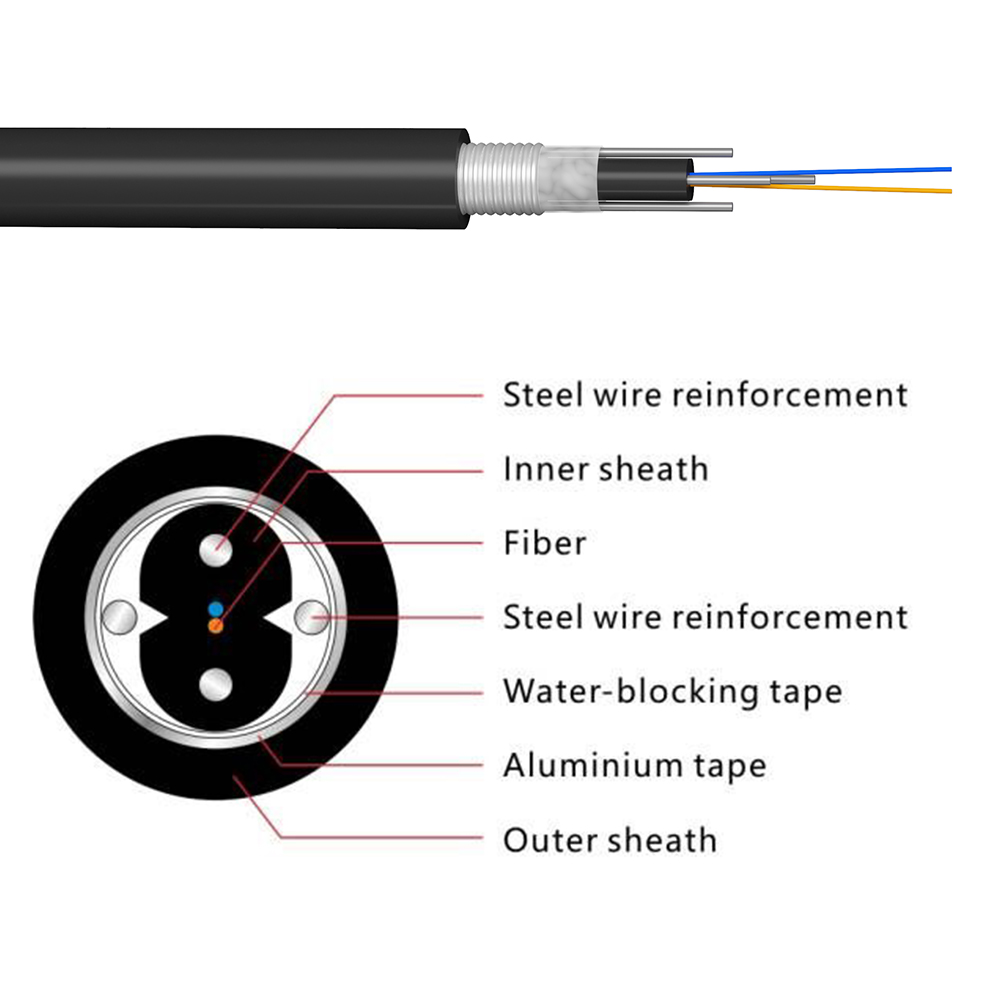

   The GJYXHA cable structure uses colored optical fiber ( single mode or multimode fiber ) as the signal transmission unit, and a metal reinforcement is placed on both sides to form an arc butterfly cable. At the same time, a metal steel wire is placed in the butterfly cable slot as the reinforcement element to improve the tensile efficiency of pipeline construction, and the aluminum strip shielding layer is installed for moisture proof.  Finally, a layer of polyolefin sheath was extruded on this basis.

• Compared with the traditional butterfly optical cable, it has stronger tensile resistance, more convenient construction, and smaller friction coefficient；

• It has high pressure flat force and tension resistance, and can withstand certain tension；

• Armoured aluminum shielding layer with good moisture proof effect；

• The specific V-shaped groove is easy to peel, and the site construction is convenient to peel；

• Construction and maintenance of urban pipeline skin line；

• Can meet a certain span rod and wire laying, compared with the ordinary self-supporting cable erection distance farther；

• Products are widely used in FTTH introduction；

• YDT 1997.1-2014 Introduction of optical cables for communications Part 1 : Butterfly optical cables, IEC-60332 standards.
