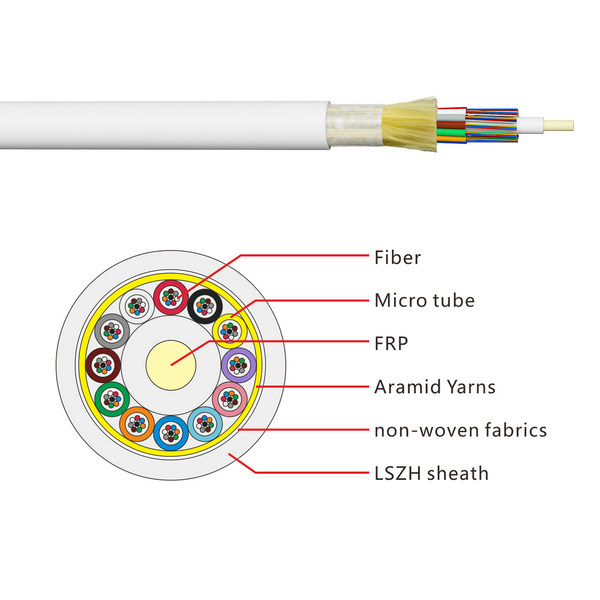

GJBFZY fiber cable structure is composed of multiple single-mode or multi-mode fibers placed in flame retardant and LSZH micro bundle tubes. Non-metallic reinforcement cushions are closely surrounded by multiple micro bundle tube units to form a compact cable core, and multiple high-strength aramid fibers are used as reinforcement elements in the outer layer of the cable core. At the same time, a layer of non-woven fabric wrapped outside the aramid fibers can fully ensure the roundness of the cable and reduce the heat transfer. Finally, a LSZH sheath is extruded.

• High strength aramid fiber, good flexibility and bending properties of light unit；

• Multichannel by branch, suitable for complex building multiport access；

• The light unit adopts oil paste loose sleeve structure, which can be stripped by hand, without special stripping tools, to shorten the stripping time；

• High strength aramid reinforcement ensures long-term stability of fiber transmission characteristics；

• All - dielectric non - metallic structure, which can be widely used in indoor introduction scenarios such as strong electric field and frequent lightning；

• Flame retardant sheath with strong self-extinguishing and flame retardance；

• LSZH flame retardant polyolefin sheath, UV resistant, waterproof, environmental stress cracking; and no corrosion of machine room equipment, suitable for indoor and outdoor use or indoor environment with high flame retardant grade.

• Suitable for multi-directional signal transmission between instruments or communication equipment；

• All-optical network laying can be completed in coordination with indoor optical cable ( including jumper ), outdoor optical cable and optical splitter；

• Micro bundle tube structure, ultra-thin wall thickness design, suitable for building pipe narrow space crossing；

• Can be applied with branch box, according to customer customization requirements；

• Realization of indoor and outdoor connection, reduce contact box cost, lightning protection and electric contact protection, improve product stability and reliability.

• YDT1258.4-2009 Indoor Cable Series Multicore Cables, ICEA-596, GR-409, UR-CRP and IEC794；

• UL-certified OFNR, OFN-FT4 / 6, OFNP

•

•


•
