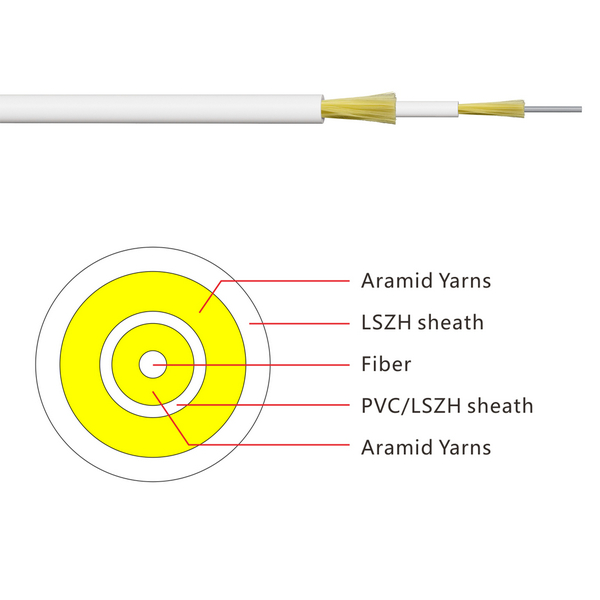

The GJFFJH ( V ) fiber optical cable is composed of ф250 μm natural color fiber ( single-mode or multi-mode fiber ) and aramid yarn. The thermoplastic material is extruded outside into a ф900 μm semi-loose structure, and then the aramid yarn is uniformly distributed outside the optical unit, and the PVC ( LSZH ) sheath is extruded.

·Single core optical unit contains high strength aramid yarn, the unit tube has good tensile resistance, good bend performance and high flexibility.

·The optical unit is easy to peel and connect. Compared with the traditional tight tube structure, the stripping procedure is removed and the outer sheath can be ripped by hand. The operation is simple and quick.

·The optical unit adopts semi-loose tube and fully dry structure, and there is no ointment in the tube, which is friendly to environmental and can shorten the continuous cleaning time;

·It contains evenly coated aramid yarn to fully ensure that the longitudinal tensile effect of the fiber is excellent;

·Good flame retardant performance, widely suitable for integrators, carriers and network providers server center equipment; anti-retardant and Self-extinguishing;

·Has corrosion resistance, UV protection, environmental protection and other advantages;

·Integration, Operator Data Service Center Equipment Interconnection

·Jumper, tail fiber and indoor wiring.

·YD / T1258.2-2015, GB / T 9771-2008, ICEA-596, GR-409, IEC794, UR-CRP and other standards; Fulfil UL certification OFNR, OFNP requirements
