GJYFXTW53
All rights reserved.Copyright reserved

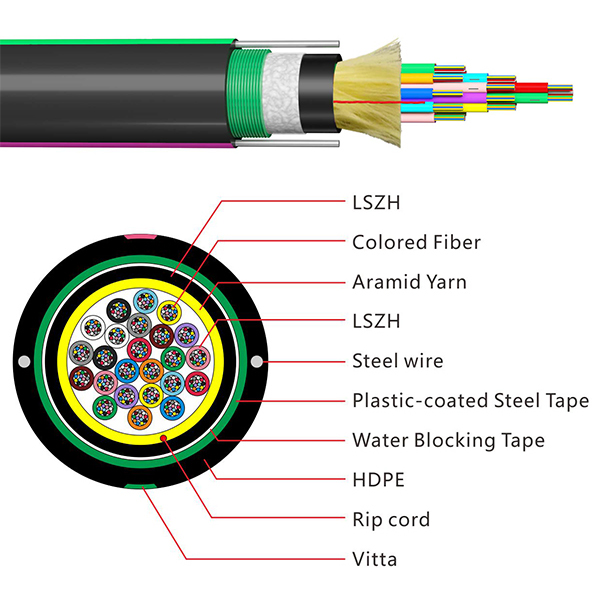

The GJYFXTW53 cable is made by placing several coloured fibres in LSZH miniature cluster tubes and spirally twisting them around a non-metallic tensile element (aramid) to form a stable circular core, Which is wrapped in an outer longitudinal sheath of high-strength aramid yarn and water-blocking tape and then extruded with a LSZH inner sheath, and the outer longitudinal layer is wrapped with water-blocking tape, ripcord and plastic-coated steel tape for waterproofing and easy peeling effect, with a parallel steel wire on each side of the steel tape, then the outer sheath is extruded with a layer of polyethylene material.
Double sheath structure, with good resistance to lateral pressure;
Containing multiple strands of high strength aramid fibers with excellent tensile resistance;
High density and small outer diameter for indoor/outdoor switching with excellent stripping effect;
Two parallel metal reinforcements ensure the tensile strength of the cable;
Symmetrical ripcords improve construction efficiency and reduces stripping time;
Symmetrical ripcords improve construction efficiency and reduces stripping time;
YD/T769-2010、YD/T 901-2018 and IEC 60794 standards..
|
| G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation | @850nm | - | - | ≤3.5dB/km | ≤3.5dB/km |
@1300nm | - | - | ≤1.5dB/km | ≤1.5dB/km | |
@1310nm | ≤0.45dB/km | ≤0.45dB/km | - | - | |
@1550nm | ≤0.30dB/km | ≤0.30dB/km | - | - | |
Bandwidth | @850 | - | - | ≥500MHZ·km | ≥200MHZ·km |
@1300 | - | - | ≥500MHZ·km | ≥500MHZ·km | |
Numerical Aperture | - | - | - | 0.200±0.015NA | 0.275±0.015NA |
Wavelength | - | ≤1260nm | ≤1480nm | - | - |
Fiber Count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
144 | 15.3 | 98.7 | 1000/3000 | 600/1500 | 20D/10D |
288 | 21.0 | 164.3 | 1000/3000 | 600/1500 | 20D/10D |
Note: The above is the typical value of household cable. The corresponding size can be set according to customer specific requirements and can be adjusted according to the actual situation |
