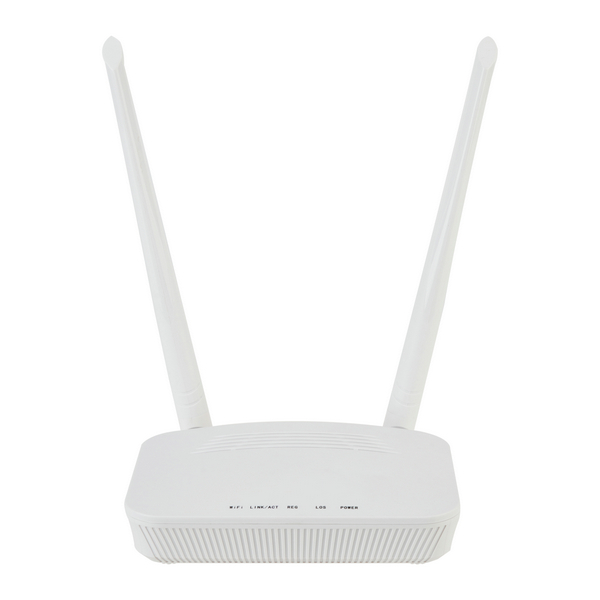

Mecable-1GE+WIFI EPON ONU
All rights reserved.Copyright reserved
Mecable-1GE+WIFI terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. It based on the mature Gigabit EPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Integrated OAM remote configuration and maintenance function.
Support rich QinQ VLAN functions and IGMP Snooping multicast features.
Functions like transceiver diagnostic monitoring, transmitter disable, etc.
Fully compatibility with OLT based on popular chipset.
Support NAT, Firewall function.
Integrated 802.11b/g/n, 300Mbp
EPON IEEE802.3ah
Main Chipset | Popular model in Market |

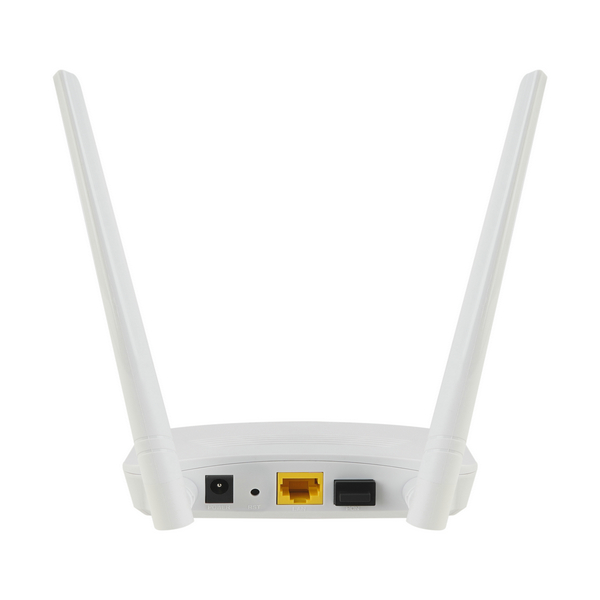

Upstream PON interface | 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Optical interface | SC connector |
Downstream LAN interface | 1 10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
WLAN | Compliant with IEEE802.11b/g/n, 2R2T, 300Mbps, One internal antenna and one external antenna |
Indicators | 5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
DC power supply | +12V, external AC-DC power adaptor |
Power switch | 1 |
Power consumption | ≤3W |
Operating condition | Operating temp: -5~+55℃ |
Operating humidity:10~90%(non-condensed) | |
Storing condition | Storing temp: -30~+60℃ |
Storing humidity:10~90%(non-condensed) | |
Dimension | 120mm*78mm*28mm(length*width*height) |
Net weight | 0.25Kg |
