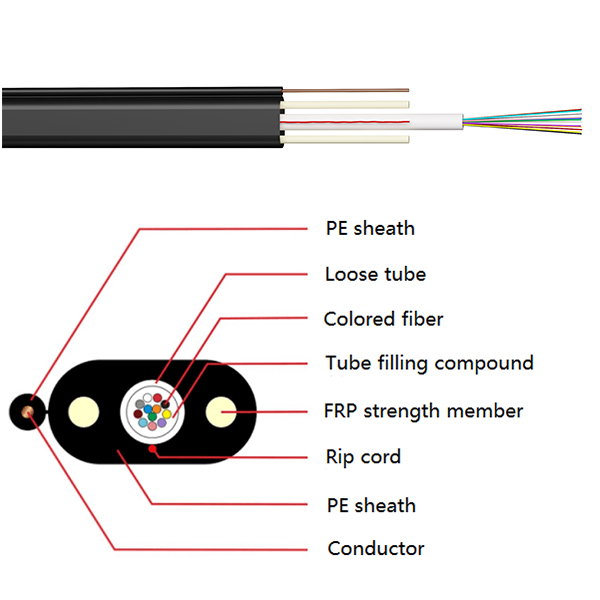

GDFXTBY photoelectric composite cable is composed of optical unit and electrical unit, and the outer layer is molded into a polyethylene sheath to form a figure 8 structure product. The optical unit is a plurality of (1-12 core) 250μm colored optical fibers (single-mode or multi-mode optical fibers), which are inserted into a loose tube made of high modulus plastic filled with a waterproof compound. A non-metallic tensile strength element (FRP) is placed on each side of the beam tube, and a tearing rope is placed on the outer layer of it. Then, the structure of the loose tube and two non-metallic reinforcements is formed by extruding high-density polyethylene to form an arc runway cable. The electrical unit is extruded with an insulating layer on the outer layer of a single conductor for current transmission; In short, the product is consist of integrates optical fiber, transmission copper wire and copper signal wire, which can solve the broadband access, equipment electricity, emergency signal transmission and other occasions.

·PBT loose tube material has good hydrolysis resistance, and special oil is filled in the tube to protect the optical fiber.

· Each optical unit is nonmetal structure, has light weight and easy to lay, the electromagnetic and lightning protection effect is better.•

· Corrosion resistance, uv protection, environmental protection and other advantages.

·Integrating optical fiber and power transmission and distribution cable in one to avoid secondary wiring, which can effectively reduce the cost of network construction.

·It has the advantages of high reliability, low data transmission price, convenient connection, etc.

·Small outer diameter, light weight, saving pipeline space resources.

·Compared with traditional FTTH, photoelectric composite cable can be used as client access, which can save a lot of metal, pipe, plastic and other resources and effectively reduce the costs of users and entering to the neighborhood.

· Suitable for a variety of service types, strong adaptability, scalability, wide range of product adaptation (such as IPTV Internet access, multimedia telephone, voice communication, micro power supply and other services)

·Smart grid and family broadband access.

·Photoelectric Composite cable complies with Standard： YD/T769-2010、YD/T 2159-2010、YD/T 5242-2018、 GB/T 9771-2008、 IEC794

·Indoor coverage of large-area long-distance scenes (such as exhibition center, high-end hotel, high-end office building, transportation hub, shopping center, underground parking garage and other typical indoor sub-scenes)
