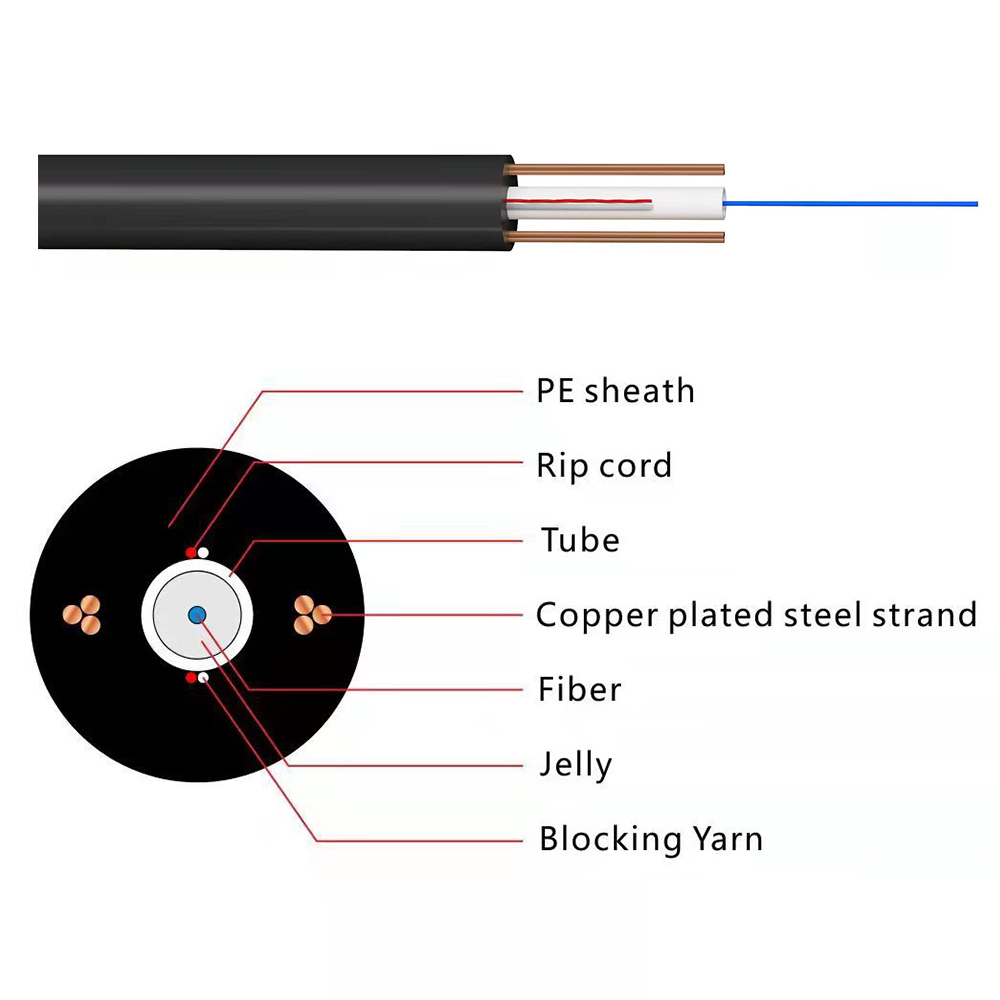

The GDXTY fiber cable structure is that a single 250 μm colored fiber ( single-mode or multi-mode fiber ) is inserted into the internally filled waterproof compound loose tube made of high-modulus plastic, 2 pcs of water blocking yarn is wrapped around the loose tube. Then 2 pcs of  rip cords are placed, and a copper plated   steel strand is placed on both sides in parallel. On this basis, high-density polyethylene is extruded to form a circular structure fiber cable.

·Precise control of the excess length of the optical fiber ensures  that the optical cable has good tensile performance and temperature  characteristics;

·PBT loose tube material has good hydrolysis resistance, and the tube  is filled with special grease to protect the optical fiber;

·The self-supporting part is made of metal steel strands to realize  long-distance spans;

·It has the advantages of corrosion resistance, UV protection and  environmental protection;

Outdoor  electric poles are suspended overhead and laid in mountain and forest areas.

YD/T769-2010, GB/T  9771-2008, IEC60794 and other standards.
