Stranded Loose Tube Armored Cable(GYTY53)
All rights reserved.Copyright reserved

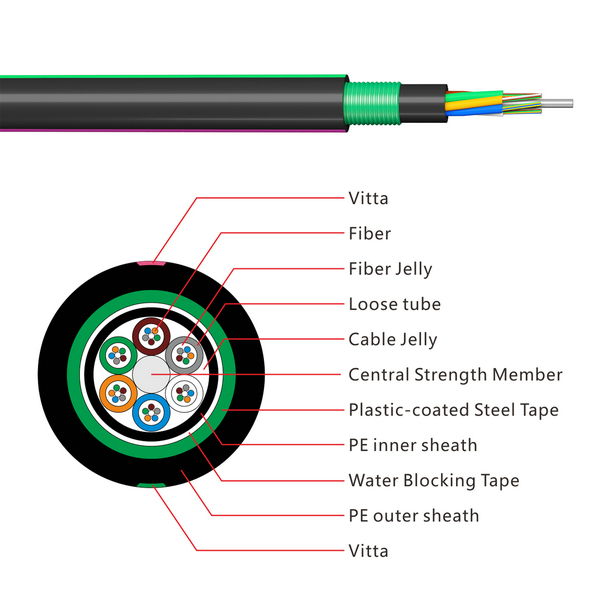

The fibers,200/ 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
· Good mechanical properties and temperature characteristics
· The loose tube material itself has good water resistance and high strength
· The tube is filled with special ointment to protect the optical fiber critically
· PE sheath has good anti-ultraviolet radiation performance
· Good pressure resistance, suitable for pipeline or direct buried wiring
· Single steel wire center reinforcement core
· The loose tube is filled with special waterproofing compound
· Complete core filling
· Double-sided plastic-coated steel belt (PSP) improved moisture resistance of fiber optic cables
· Good water blocking material to prevent longitudinal water seepage of optical cable
·GYTY53 cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.
