GJYFJU(H) Universal Indoor & Outdoor Cable

    Product Show

    All rights reserved.Copyright reserved


    Products Description

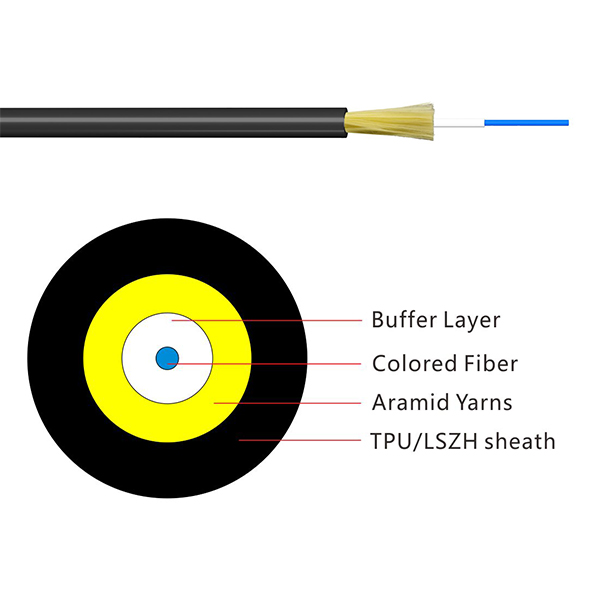

       GJYFJU universal indoor & outdoor fiber  optic cable is structured by evenly applying strands of Aramid yarns as the  strength member over ф900μm LSZH tight buffer fibers and then  completed with TPU (LSZH) jacket.

    Products Features

      high-strength aramid yarn, excellent tensile strength and good bending and  flexibility ;

      Tear resistant and superior abrasion-resistance, high impact strength,Steady  performance both in extremely high and low temperature.

      Suitable for ultraviolet direct sun and other outdoor  environments, and outstanding stable  performance.

      High machanical strength, and excellent loading strength

      Nice oil resistance, acid and alkali resistance

      TPU series, with excellent   hydrolysis resistance, determine it to become the first choice of  environmentally friendly products.

      With the advantages of corrosion resistance, UV protection, environmental  protection and so on;


    Products Application

      LAN and FTTX, FTTH networks

      Distributing network, ODF connection

      OLT connection for indoor use

    Products Standard

      GJYFJU(H)universal indoor & outdoor cable complies with Standard  YD/T1258.2-2015、GB/T 9771-2008、ICEA-596、GR-409、IEC794、UR-CRP  etc.

    Optical Characteristics


    G.657A2

    G.657B3





    Attenuation
            (+20℃)

    @1310nm

    ≤ 0.35dB/km

    ≤0.35 dB/km

    @1383nm

    ≤ 0.35dB/km

    ≤0.35 dB/km

    @1490nm

    ≤0.24 dB/km

    ≤0.24 dB/km

    @1550nm

    ≤0.20dB/km

    ≤ 0.20dB/km

    @1625nm

    ≤ 0.23dB/km

    ≤ 0.23dB/km

    Effective group Index of Refraction

    1310nm

    1.466

    1.468

    1550nm

    1.467

    1.469

    Cable Cutoff Wavelength

     -

    ≤1260nm

    ≤1480nm

    Structure Parameter

    Fiber Count

    Cable Diameter
    mm

    Cable Weight
        Kg/km

     Tensile Strength
        Long/Short Term
    N

    Crush Resistance
        Long/Short Term
         N/100m

    Bending Radius
          Static/Dynamic
    mm

    1~2chip

    7.0

    42

    300/600

    1000/2200

    10D/20D

    Technical Parameters

     Fiber Count

    Cable Diameter

       mm

    Cable Weight
        Kg/km

    Tensile Strength
        Long/Short Term
    N

    Crush Resistance
          Long/Short Term
        N/100m

    Bending Radius
         Static/Dynamic
    mm

    1core

    3.0

    10.0±10%

    400/800

    100/500

    20D/10D

    Environmental Characteristics

    Transport    Temperature

    -40℃~+70℃

    Storage Temperature

    -40℃~+70℃
