FTTH drop cable
All rights reserved.Copyright reserved

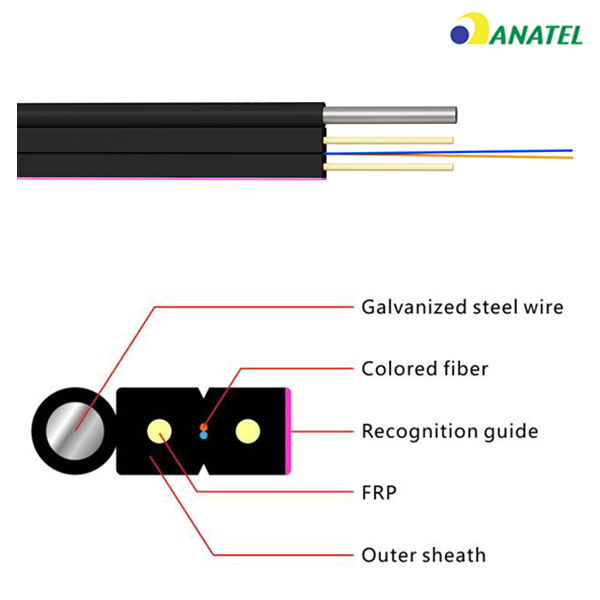

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath,There is a recognition guide at the bottom of the cable.
·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
·Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
·Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
·Simple structure, light weight and high practicability.
·Novel flute design, easily strip and splice, simplify the installation and maintenance.
·Low smoke, zero halogen and flame retardant sheath.
·Complies with Standard YD/T 1997-2009.
