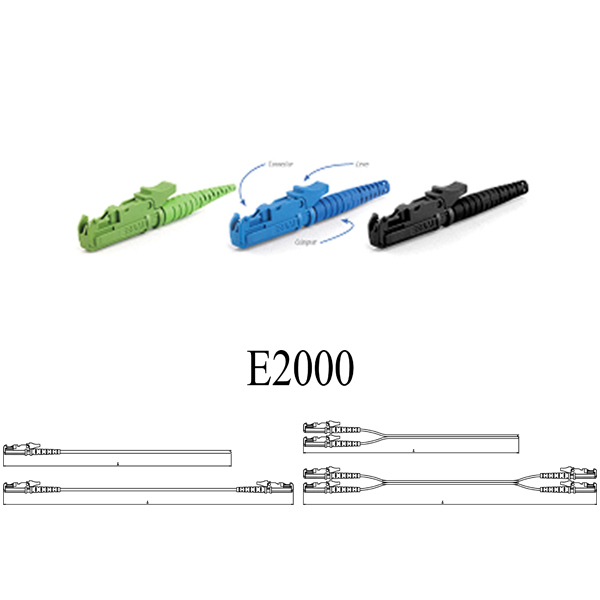

E2000 Fiber Opitcal Patch Cords
All rights reserved.Copyright reserved
★ Outer Sheath: LSZH（OFNR and OFNP） 、PVC (OFNR and OFNP)
★ Cable Optical Patch Cords: Single Core、 Twin-core, Multi-Core Branched Cable、Optical Fiber Ribbon Cable
★ Connector Type: ￠0.9mm、￠2.0mm、￠3.0mm
★ Comply with ROHS
★ According to requirements can supply: OS2、OM2、OM1、OM3、OM4
★ Single Packing in Plastic bag
★ With Sequence label
★ Insertion Loss performance comply with: IEC 61300-3-4
★ Return Loss performance comply with: IEC61300-3-6
★ End Face Geometric Dimension：
★ UPC Radius of Curvature：10 ～ 25mm
★ APC Radius of Curvature：5 ～ 12mm
Apex Offset：0 ～ 50um
Fiber Height：+50 ～ -100
★ Mechanical Performance：
Insert and Draw Frequency：500 times<0.2dB
Transportation and Storage Temperature：-40℃ to+85℃
Working Temperature：-20℃ to+75℃
★单独包装在塑料包装袋内
★带有序号标签
