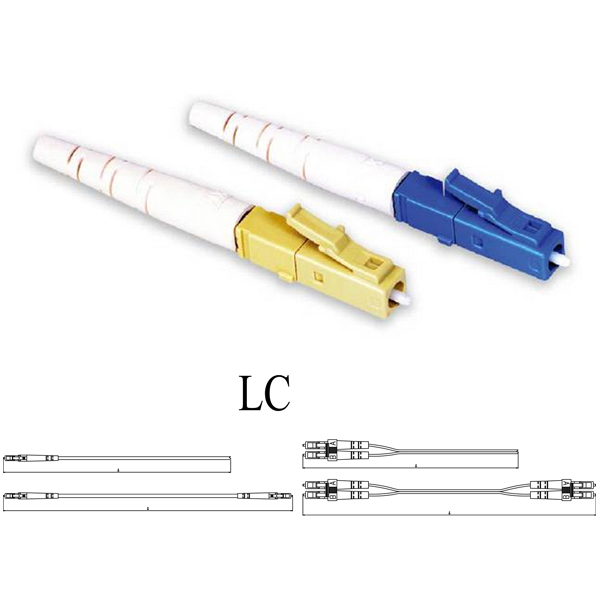

LC Fiber optic patch cord
All rights reserved.Copyright reserved
★ Jacket material: LSZH（OFNR and OFNP） 、PVC (OFNR and OFNP)
★ Fiber patch cord structure:Simplex,Duplex,Bunch type，Ribbon type.
★ Connectors:￠0.9mm、￠2.0mm、￠3.0mm
★ Compatible with ROHS
★ Optional Fiber Cable can choose from:OS2,OM2,OM1,OM3,OM4
★ Polybags packing for each
★ Packing with label
★ Insertion loss rate compatible with IEC 61300-3-4
★ Return loss rate compatible with IEC 61300-3-6
★ End face Geometrical size
★ UPC radius of curvature：10 ～ 25mm
★ APC radius of curvature：5 ～ 12mm
Apex offset：0 ～ 50um
Fiber dent：+50 ～ -100
Transport & Storage environment: -40℃ to+85℃
Operation environment: -20℃ to+75℃
★单独包装在塑料包装袋内
★带有序号标签
